Shift4 Online Ordering API

Enable seamless online ordering integration for restaurants with Shift4's comprehensive API. Manage menus, create and update orders, track real-time status changes, integrate delivery services, and handle inventory with our V2 and V3 APIs.

Get Started with V3View V2 Documentation

Getting started

The Shift4 Online Ordering API enables third-party integrations with Shift4's POS system for managing restaurant orders. The API supports real-time order processing, menu synchronization, and webhook notifications for order status changes.

Start with Menu API

Regular & Future Orders

Shift4 Online Ordering interface supports two types of orders:

FlowDescription
RegularThese orders are in ready for confirmation state, so the order confirmation request from the POS is expected. Mostly used for ASAP orders.
FutureThese orders are read-only in the POS, so no action from the POS is expected. Also those orders should be either cancelled by the diner or marked as ready for confirmation. Mostly used for Future Orders.
Future & Regular Order Flow difference

Order Status Lifecycle

The system defines eight distinct order statuses:

StatusDescription
ANTICIPATEDDenotes a future order, which may be cancelled by a diner.
READY_FOR_CONFIRMATIONIndicates that the confirmation of the receipt by a restaurant is pending. Effectively, these are new, immediate orders.
CONFIRMEDIndicates that the order was confirmed by a restaurant.
REJECTEDIndicates an error. For example, if an order is unable to be pushed to the POS (due to a menu item mismatch, the restaurant being offline, etc.), the status should be updated to REJECTED.
READY_FOR_PICKUPIndicates that the food is prepared and ready for the pickup by the diner or a delivery courier.
OUT_FOR_DELIVERYIndicates that the food is on the way to the diner.
CANCELLEDIndicates that the diner cancel an order in 3rd-party.
FULFILLEDIndicates that the food has been delivered to or picked up by the diner.

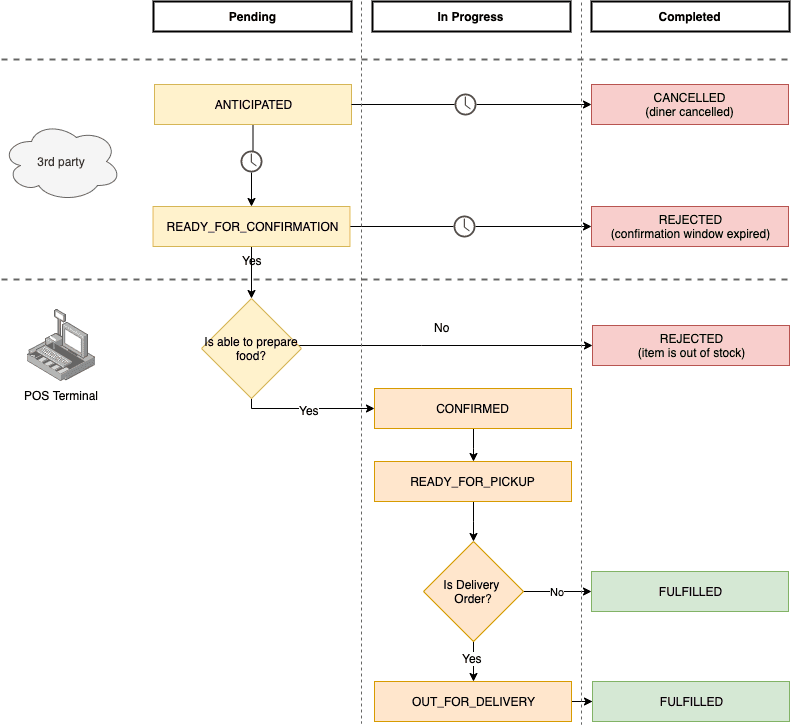

Order Status flow

Order Workflows

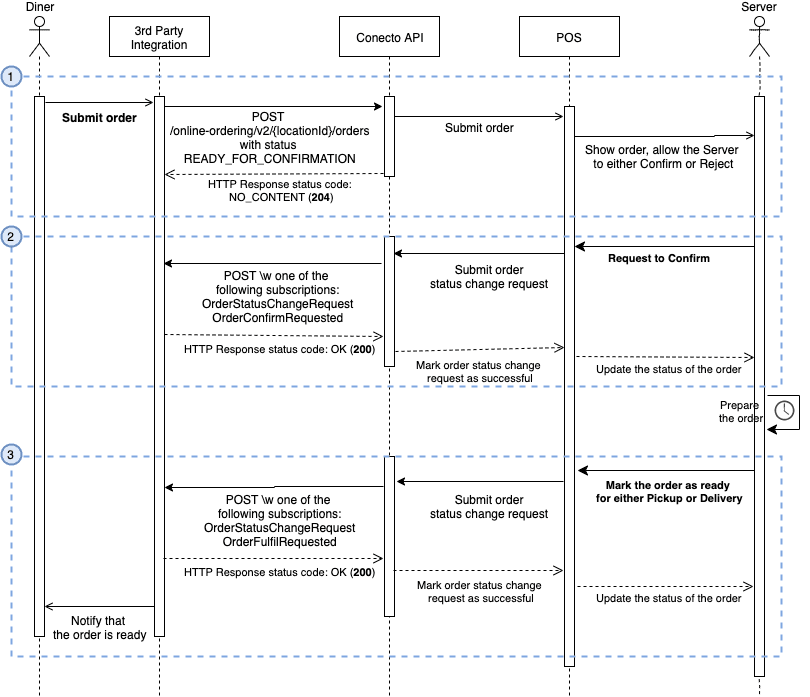

Regular Order Confirmation Flow

The diagram below explains how the regular (ASAP) order confirmation flow involves the 3rd-party & POS.

  1. 3rd-party creates a new order with the "READY_FOR_CONFIRMATION" order status.
  2. Server defines waitTimeInMinutes and sends a request to confirm an Order. 3rd-party accepts the notification by responding 200 as status code, otherwise the Order status wouldn't be changed in POS.
  3. Server sends a notification that the Order is ready for pickup, out for delivery or fulfilled. 3rd-party accepts the notification by responding 200 as status code, otherwise the Order status wouldn't be changed in POS.
Regular Order Confirmation Flow

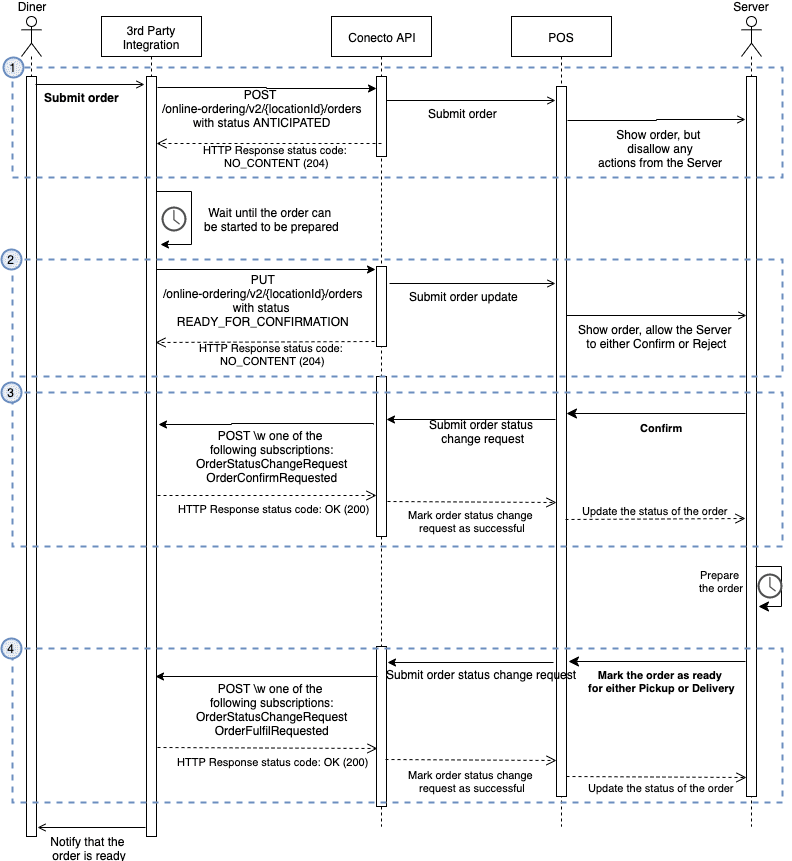

Future Order Confirmation Flow

The diagram below explains how the future order confirmation flow involves the 3rd-party & POS.

  1. 3rd-party creates a new order with the "ANTICIPATED" order status.
  2. 3rd-party waits until the order can be started to be prepared and sends an Order update with the order status "READY_FOR_CONFIRMATION".
  3. Server defines waitTimeInMinutes and sends a request to confirm an Order. 3rd-party accepts the notification by responding 200 as status code, otherwise the Order status wouldn't be changed in POS.
  4. Server sends a notification that the Order is either ready for pickup, out for delivery or fulfilled. The 3rd-party accepts the notification by responding 200 as status code, otherwise the Order status wouldn't be changed in POS.
Future Order Confirmation Flow

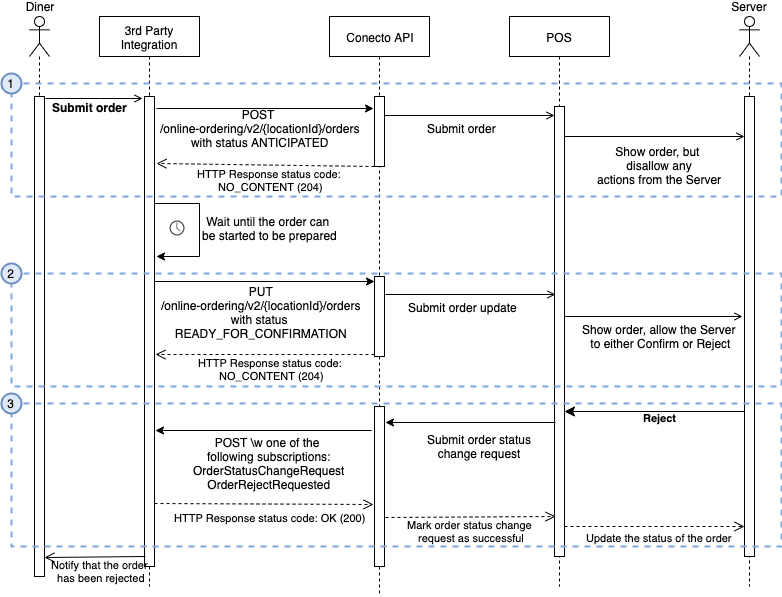

Future Order Rejection Flow

The diagram below explains how the future order rejection flow involves the 3rd-party & POS.

  1. 3rd-party creates a new order with the "ANTICIPATED" order status.
  2. 3rd-party waits until the order can be started to be prepared and sends a the Order update with the order status "READY_FOR_CONFIRMATION".
  3. Server defines reason and sends a request to reject an Order. 3rd-party accepts the notification by responding 200 as status code, otherwise the Order status wouldn't be changed in POS.
Order Rejection Flow

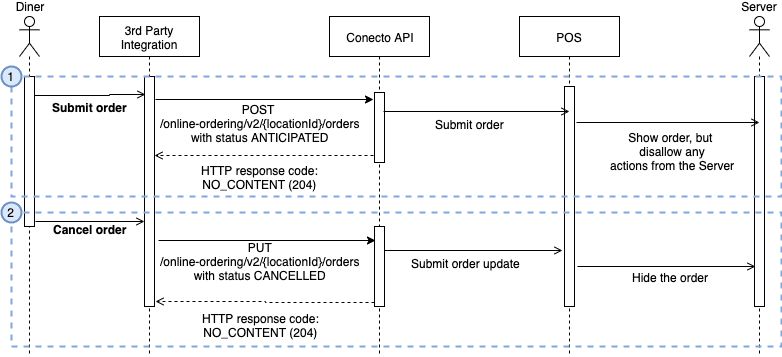

Future Order Cancellation Flow

The diagram below explains how the future order cancellation flow involves the 3rd-party & POS. Note that orders with "ANTICIPATED" or "READY_FOR_CONFIRMATION" statuses might be cancelled.

  1. 3rd-party creates a new order with the "ANTICIPATED" order status.
  2. 3rd-party sends an Order update with the order status "CANCELLED".
Order Cancellation Flow

API versions

Online Ordering V3 (Latest)

V3 is the latest version with enhanced features and improved capabilities. It includes stock status tracking, delivery service integration, expanded order lifecycle management, and post-confirmation customization.

New in V3:

  • Real-time stock status updates (LOW_STOCK, OUT_OF_STOCK)
  • Delivery service quotes and integration
  • Enhanced order statuses (VOIDED, REFUNDED, PLACEMENT_FAILED)
  • Post-confirmation attribute updates (vehicle, pickup location, table)
  • Expanded webhook events for refunds and voids
  • Better metadata support

Online Ordering V2 (Stable)

V2 is the stable, production-ready version that provides core online ordering functionality including menu management, order creation and updates, and webhook notifications.

V2 Features:

  • Complete menu structure with schedules, categories, items, and modifiers
  • Order lifecycle management with 8 distinct statuses
  • Real-time webhook notifications
  • Support for multiple fulfillment types (DELIVERY, PICKUP, DINE_IN, CURBSIDE)

Key features

Menu Management

Retrieve comprehensive menu structures including schedules, categories, items, modifiers, and taxes. Menus support availability flags, operating hours, and customizable pricing with tax calculations.

  • Schedule-based availability
  • Nested modifier sets with min/max constraints
  • Multiple image formats for different display contexts
  • Real-time menu update notifications

Order Creation and Updates

Create orders with flexible fulfillment types and update statuses throughout the order lifecycle. Support for anticipated (future) orders and immediate confirmation workflows.

  • Multiple fulfillment types: DELIVERY, PICKUP, DINE_IN, CURBSIDE
  • Future order scheduling with ANTICIPATED status
  • Real-time status transitions
  • Payment integration with multiple payment types

Real-time Webhooks

Subscribe to webhook events for menu changes and order status updates. Webhooks provide instant notifications when merchants confirm, reject, or fulfill orders.

  • HMAC-SHA256 authentication for security
  • Comprehensive event types for all order lifecycle changes
  • Menu update notifications
  • Stock status updates (V3)

Delivery Integration (V3)

Integrate with third-party delivery services to provide accurate delivery quotes and estimated times. Support for multiple delivery providers with real-time quote generation.

  • Multi-provider support (DoorDash, Uber Direct, etc.)
  • Real-time delivery fee and ETA calculation
  • Age-restricted item handling
  • Address validation

Stock Status (V3)

Track real-time inventory availability with dedicated stock status endpoints. Display LOW_STOCK warnings and prevent orders for OUT_OF_STOCK items.

  • Real-time stock visibility
  • Lightweight polling or webhook updates
  • Integration with menu items via references
  • Two-state status model (LOW_STOCK, OUT_OF_STOCK)

Subscriptions and Webhooks

Configure webhook endpoints to receive real-time notifications for order status changes and menu updates. All webhooks use HMAC authentication for security.

  • Request confirmation and rejection notifications
  • Order fulfillment and status change events
  • Menu update notifications
  • Stock status change webhooks (V3)
  • Refund and void notifications (V3)
